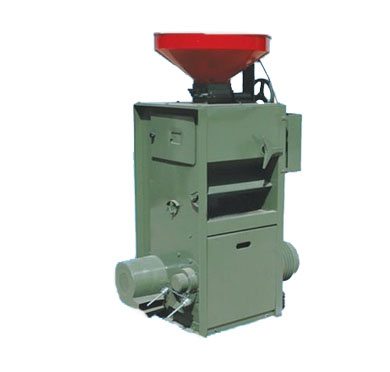

SB combined rice mill is a combination of integrated rice processing equipment. Rice into the machine through vibrating screen, magnetic separation equipment, after a roller hulling (remove the outer yellow Shell), winnowing, spray wind milling (remove the brown inner shell, and then white rice will come out ), consecutively from the net valley shelling to the milled white processing operations, chaff, fine bran, blighted valley, rice, respectively discharged outside the machine. This machine has all the advantages of other rice mills, comprehensive layout, rational design, compact structure, operation and regulation is simple and reliable, low noise. The rice form the machine has less bran, light broken, accuracy can be achieved over the standard one. This machine has low power consumption, high efficiency, is a new generation of combined rice mill.
|
Type |
Packing Size
(mm) |
Productivity
(KG/H) |
G.W
(KG) |
N.W
(KG) |
Power
(KW) |
|
Combined rice mill SB-5 |
670×650×`1340 |
400-600 |
190 |
130 |
5.5 |
|
Combined rice mill SB-10D |
780×760×1700 |
600-900 |
285 |
195 |
7.5-11 |
|
Combined rice mill SB-30 |
970×760×1700 |
1100-1500 |
320 |
230 |
15 |
|
Combined rice mill SB-50 |
1050×970×2200 |
1800-2300 |
780 |
630 |
22 |
1.The packing size of combined rice mill SB-10D: 750×740×1300
Using binning packing, a small cabinet can hold 24 sets,( 26 boxes, two of these boxes will put into hopper child, horizontally placed above ,is the same size ). the remaining space is large.
Using binning packing, a 1 × 40 high cabinet can hold 90 sets (96 boxes).
2. The packing size of combined rice mill SB-30: 970×760×1290
Using binning packing, a small cabinet can hold 18 sets,( 20 boxes, two of these boxes will put into hopper child, horizontally placed above ,the size is 750×740×1300 mm ). The remaining space is large.
Using binning packing,a 1 × 40 high cabinet can hold 67 sets (72 boxes).
|
