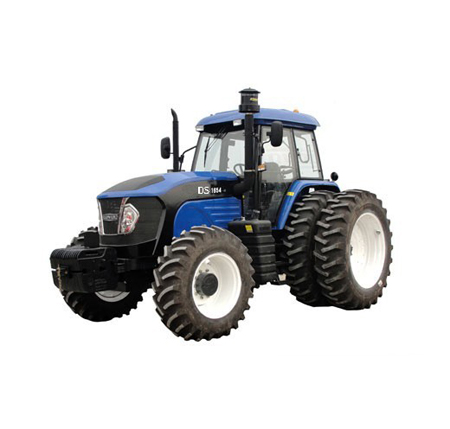

Main Features (DSTG1654/1854)
1. Italy CARRARO double-cylinder front drive axle has a high reliability.
2.German Luk clutch has a high reliability,and the optional hydraulic power steering
system can improvethe manipulation.
3.Optional German Rexroth electrically controlled lifter can achieve force adjustment,
position adjustment,force-position control,and floating control.
4.16+16 synchronizer shift with a wide speed range can adapt to various operation.
The use of shuttle shift structure makes the manipulation more convenient.
5. 350-liter lower large fuel tank,a long operation time.
6. GOST certification model is available.
Technical parameters
|
Drive type |
4*4 |
|
Overall dimension(L*W*H) |
5420*3400*3110 |
|
Wheelbase(mm) |
2760 |
|
Track( front/rear) |
1720-2100/1680-2380single,(2380double) |
|
Track(front/rear)regulating method |
Step/stepless |
|
Minimum ground clearance |
450 |
|
Min.operating weight(kg) |
8050 |
|
Counterweight (max) (front/rear) |
900/720 |
|
Gears(forward/reverse/creeper) |
16+16 |
|
Theoretical speed of each gear(forward/reverse) |
3.14-31.14/2.59-25.73 |
|
